Description:

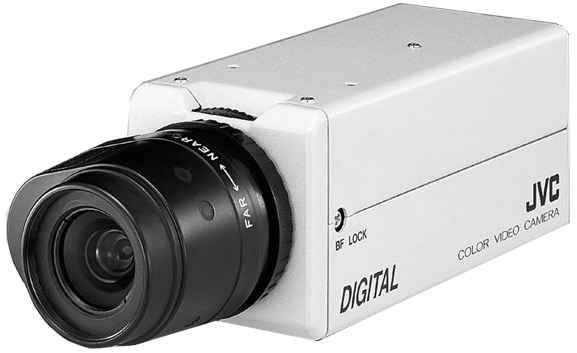

Our newest addition, JVCs TK-C700U CCTV Surveillance Camera packs the powerful features including a Digital Signal Processor for low-light applications you would expect from a highend camera, yet delivers them in a package that offers outstanding value and reliability. FEATURES: Signal system: Based on NTSC standard Pickup device: 1/3" Interline-Transfer CCD (with complementary color filter) Number of effective pixels: 250,000 (510 H x 492 V) Video process circuit: Built-in DSP (9 bits) Pickup area: 4.8 (H) x 3.6 (V) mm Sync system: Internal, Line Lock (60 Hz regions only) Scanning system: 2:1 interlaced, 525 lines Scanning frequency: (H) 15.734 kHz (V) 59.94 Hz Video output: Composite video signal: 1.0 V(p-p), 75 ohms Video S/N: 50 dB (AGC OFF) Horizontal resolution: 330 TV lines Minimum required illumination: 0.75 lx (f1.2 AGC ON) Video level 25%, 1.5 lx (f1.2 AGC ON) Video level 50% Iris control: Video iris / DC iris White balance: ATW/ Manual BLC: ON and OFF AES: ON and OFF Lens mount: C/CS mount (Possible to be attached to the camera with the lens mount change function.) Power requirement: AC 24 V (60Hz), DC 12 V Power consumption: 3.9 W Operating temperature range: 14F to 122F (-10C to 50C) Recommended temperature range: 32F to 104F (0C to 40C) Weight: 0.8 lbs. (360g)
|
